Ultra Large Format Sheet Metal Laser Cutter 24000mmx2500mm For Metal Sheet

Ask Lasest Price
Brand Name :	ZLTECH
Model Number :	ZL-24025A
Certification :	CE,FDA
Price :	USD12000-25000 per Piece
Payment Terms :	T/T, D/P, L/C, Western Union, MoneyGram, D/A
Supply Ability :	60pcs/month
Delivery Time :	10-30days

Add to Cart

Product Details
Company Profile

Ultra Large Format Sheet Metal Laser Cutter 24000mmx2500mm For Metal Sheet

Sheet Metal Laser Cutter Ultra Large Format Fiber Laser Cutting Machine For Metal Sheet

ZLTECH ultra large format fiber laser sheet cutting machine for metal sheet.

Working Area(mm)	24000*2500mm
X-axis Travel	2500mm
Y-axis Travel	24000mm
Z-axis Travel	320mm
Laser Power	6kw~40kw
X/Y Axis positioning accuracy	±0.1mm/m
X/Y Axis repeated positioning accuracy	±0.03mm
Maximum Speed	80m/min
Maximum acceleration	0.8G
Model	Split type

Product details

Safety and Environmental Protection
The laser cutter is equipped with a safety light curtain as standard.When the distance between the operator and the beam is too close, the machine will quickly receive feedback and stop running immediately to ensure personal safety.

Thick Plate Cutting, Improve Efficiency

The power can be selected from 6KW-36KW, the stable cutting thickness is more than 20mm, and the limit cutting thickness is more than 50mm.Optional ultra-large format, processing width up to 4000mm, length can be determined according to user processing requirements.

Thick Plate Cutting, Improve Efficiency

Dust removal design, 360°enclosed surround smoke exhaust. The powerful dust removal effect can not only ensure the environmental protection requirements and the health of the operators, but also protect the precision optical components in the cutting head from smoke and dust, and extend the service life.

Ultra Large Format Sheet Metal Laser Cutter 24000mmx2500mm For Metal Sheet

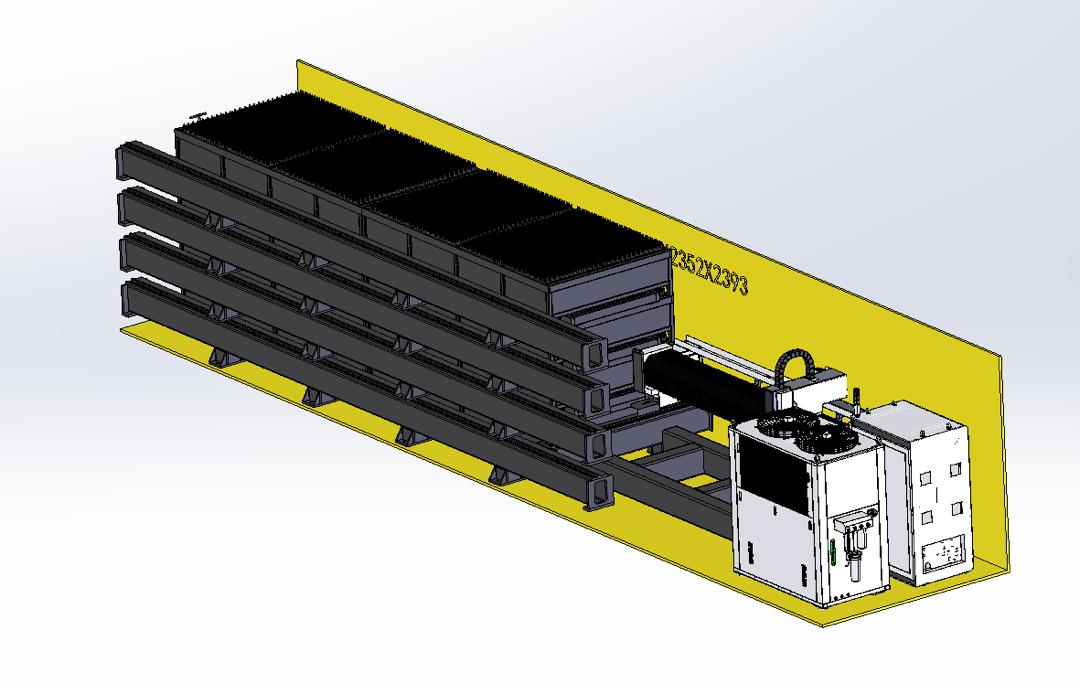

Packing design

Split design, easy to install, convenient to transfer and transport.

Products Overview

In-kind shooting details

Ultra Large Format Sheet Metal Laser Cutter 24000mmx2500mm For Metal Sheet

Laser Source / China MAX Switzerland Raytools

MAX, as a leading developer and Raytools is currenly the most popular and used

manufacturer of high performance fiber laser, cutting head brand in the market

is stable and enery-saving, which is applied cause its high presion and cost performance.

in numerous markets.

Servo Motor / Japan Fuji

Fuji servo motor can withstand high speed and high

acceleration, which decides the high stability of laser

cutting machine.

30mm Guide Rails / Taiwan Hiwin&Rack gear / Taiwan YYC

Hiwin high positioning accuracy Guide Rails makes the whole cutting machine works in a high presion situation.

YYC high presion Rack and Gear make sure the whole cutting machine works in a high presion situation.

Control System / China CypCut

Powerful functions, user-friendly design and easy operation make it currently the largest brand of CNC laser cutting machine systems in China.

Sample Display

Company Profile

FAQ

1.Are you a factory or a foreign trade company?
We have factory production machines and the price is very competitive.
We have after-sales technology to provide 24-hour service

2.If I know nothing about fiber laser cutting machine, which model should I choose?
Please tell us your materials, thickness, size and the cutting objects (plates, tubes, etc) then we will provide you professional suggestions.

3. If I do not know how to operate the fiber laser cutter, how you can help me?
First, we have detailed user manual and videos for your learning. Second, our engineers will provide you technical support in time. If you want, we can provide you training in our factory or your door.

4.How about the shipping cost?
Sea transportation, we choose 20-foot container or 40-foot container according to the size you buy.
We have a shipping company that has cooperated for many years, which can help you save costs.

5.How about the price?Can you make it cheaper?
The price depends on your needs (function, size, quantity) We will quote you the best discount after receiving your inquiry

6.How about the payment?
T/T,30% deposit, and balance is after the production is finished.
Also we accept the PAYPAL, west union,etc.

7.What‘s your delivery time?
For our standard model, the delivery time is 10-15 working days. For customzied model, it will need about 20-40 working days.

8.How to ensure the safety of the machine during transportation?
We have experienced and professional packaging team, according to the needs of customers to carry out special packaging, and we use a lot of soft materials in the inside of the packaging case to ensure the safety of the machine during transportation.
